  • Options Available

423SDW1H

SDW-1H One Pan Full Size Insulated Drop-In Hot Food Well - 208/240V

Features

  • Designed for holding hot foods at a safe serving temperature
  • Holds one full size 6" deep food pan (sold separately)
  • Individual thermostatic controls with remote control
  • Durable stainless steel top and body
  • 1000W of power per well

Certifications

  • UL Listed, US

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.

  • NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • 6-20P

    This unit comes with a NEMA 6-20P plug.

Other Available Sizes

Specifications

  • Width 16 1/2 Inches
  • Depth 25 7/8 Inches
  • Height 12 5/16 Inches
  • Power Cord Length 6 Feet
  • Control Cutout Width 6 7/8 Inches
  • Control Width 6 1/2 Inches
  • Cutout Width 15 1/2 Inches
  • Control Depth 3 3/8 Inches
  • Cutout Depth 24 7/8 Inches
  • Control Cutout Height 4 1/2 Inches
  • Control Height 4 1/8 Inches
  • Amps 4 4/25 Amps
  • Amps 4 4/5 Amps
  • Phase 1 Phase
  • Voltage 208/240 Volts
  • Wattage 1000 Watts
  • Color Silver
  • Control Type Thermostatic
  • Drain Size 3/4 Inch
  • Features NSF Listed
  • Features With Drain
  • Installation Type Drop In
  • Insulated With Insulation
  • Material Stainless Steel
  • Number of Wells 1 Well
  • Pan Mounting Flush
  • Plug Type NEMA 6-20P
  • Power Type Electric
  • Size Full Size
  • Temperature Range 136 Degrees F
  • Temperature Range 194 Degrees F
  • Type Food Wells

Hold and display your hot food safely while keeping it warm for your customers with this ServIt one pan insulated drop-in hot food well!

This hot food well is designed to hold your cooked food at a safe serving temperature, keeping it warm and ready to eat for your guests without affecting quality or further cooking your food. It's perfect for restaurants, cafeterias, buffets, and serving lines, holding cooked vegetables, pasta, fried chicken, and other cooked product. This unit requires a 208/240V electrical connections for operation.

Durable Construction

For long-lasting durability, this unit features a robust 18 gauge type 304 stainless steel top and well liner and a 20 gauge type 430 stainless steel exterior, making the outside body easy to clean and resistant to corrosion.

Product Specs

  • Removeable Drain Plug

    Each well comes with its own removable drain plug, which lets you drain and fill individual wells.

  • Convenient Design

    This hot food well can hold one full size 12" x 20" food pans up to 6" deep for added convenience (sold separately).

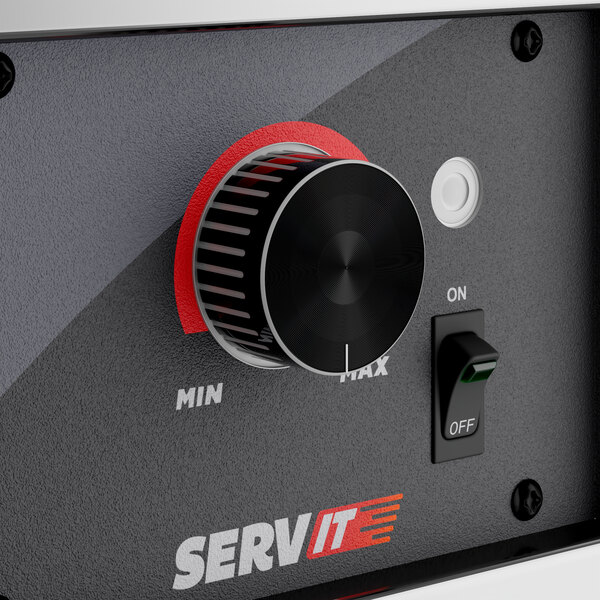

Thermostatically Controlled

It features individual thermostatically controlled wells with a remote to adjust temperatures between 136 and 194 degrees Fahrenheit, and it has individual 3/4" NPT drains with screens to prevent food waste from entering the plumbing line, allowing for quick draining during cleanup. This unit features 1000W of power per well with a foamed in insulation to hold in the heat and keep energy costs low.

Frequently Asked Questions

View All FAQs

Any cutout dimensions provided are intended to give an idea of the space required and may vary within normal manufacturing tolerances. We highly recommend that you receive the unit, measure it to confirm exact dimensions needed, and then proceed with making the cutout(s).
