  • Options Available

423SDC3A

SDC-3A Three Pan Drop-In Refrigerated Cold Food Well - 120V

Features

  • Designed for holding pre-chilled products at a safe serving temperature
  • Holds three full size 6" deep food pans
  • Durable stainless steel top and body
  • Easy-to-use digital controller
  • High-performance R-290 refrigerant; 120V, 1/3 hp

Certifications

  • 5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Other Available Sizes

Specifications

  • Width 42 13/16 Inches
  • Depth 25 7/8 Inches
  • Height 22 1/16 Inches
  • Power Cord Length 6 Feet
  • Cutout Width 41 13/16 Inches
  • Cutout Depth 24 7/8 Inches
  • Amps 2 3/10 Amps
  • Hertz 60 Hz
  • Phase 1 Phase
  • Voltage 120 Volts
  • Compressor Location Bottom Mounted
  • Control Type Digital
  • Features NSF Listed
  • Features With Drain
  • Gauge 18 Gauge
  • Gauge 20 Gauge
  • Horsepower 1/3 hp
  • Installation Type Drop-In
  • Material Stainless Steel
  • Number of Wells 3 Wells
  • Pan Mounting Recessed
  • Plug Type NEMA 5-15P
  • Power Type Electric
  • Refrigerant Capacity 2 1/2 oz.
  • Refrigerant Type R-290
  • Refrigeration Type Cold Wall
  • Size Full Size
  • Stainless Steel Type Type 304
  • Stainless Steel Type Type 430
  • Style Top Mount
  • Temperature Range 32 Degrees F
  • Temperature Range 40 Degrees F
  • Type Refrigerated Food Wells

Ensure your most popular cold foods stay chilled throughout the day with this ServIt three pan drop-in refrigerated cold food well!

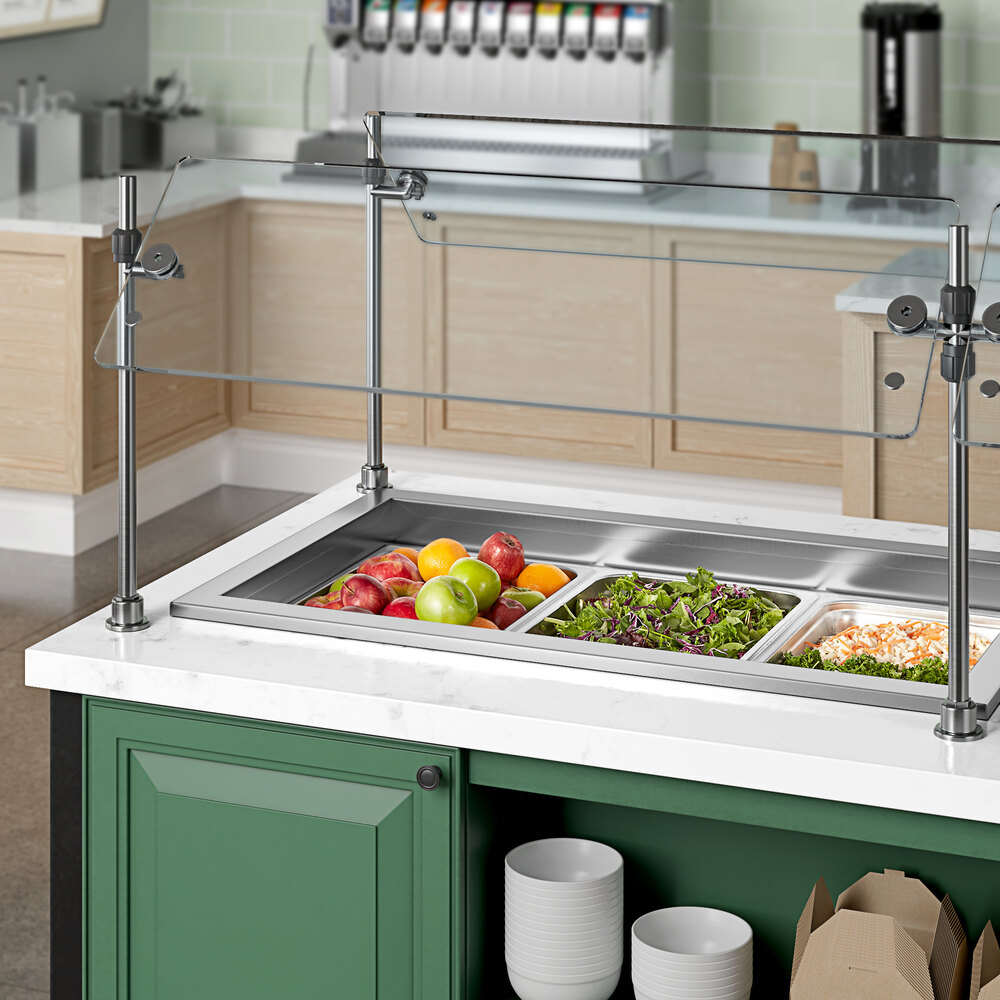

This cold food well is designed to hold pre-chilled food at a safe serving temperature, keeping it perfectly chilled and ready to eat for your guests without affecting quality. It's perfect for restaurants, cafeterias, buffets, and salad bars, holding salads, fruits, vegetables, and other chilled products. This unit requires a 120V electrical connection for operation.

Solid Construction

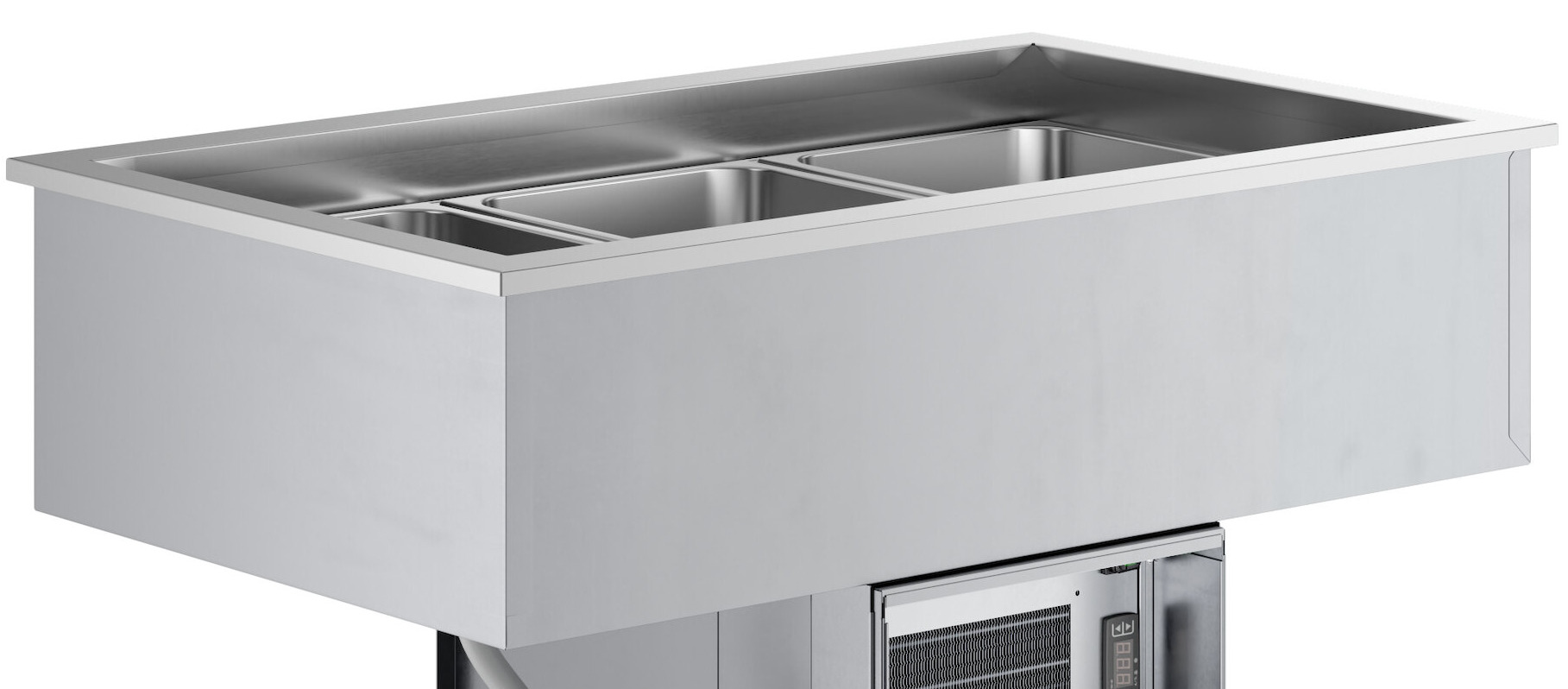

For long-lasting durability, this unit features a robust 18 gauge type 304 stainless steel top and well liner and a 20 gauge type 430 stainless steel exterior, making the outside body easy to clean and resistant to corrosion.

Consistent Temperature

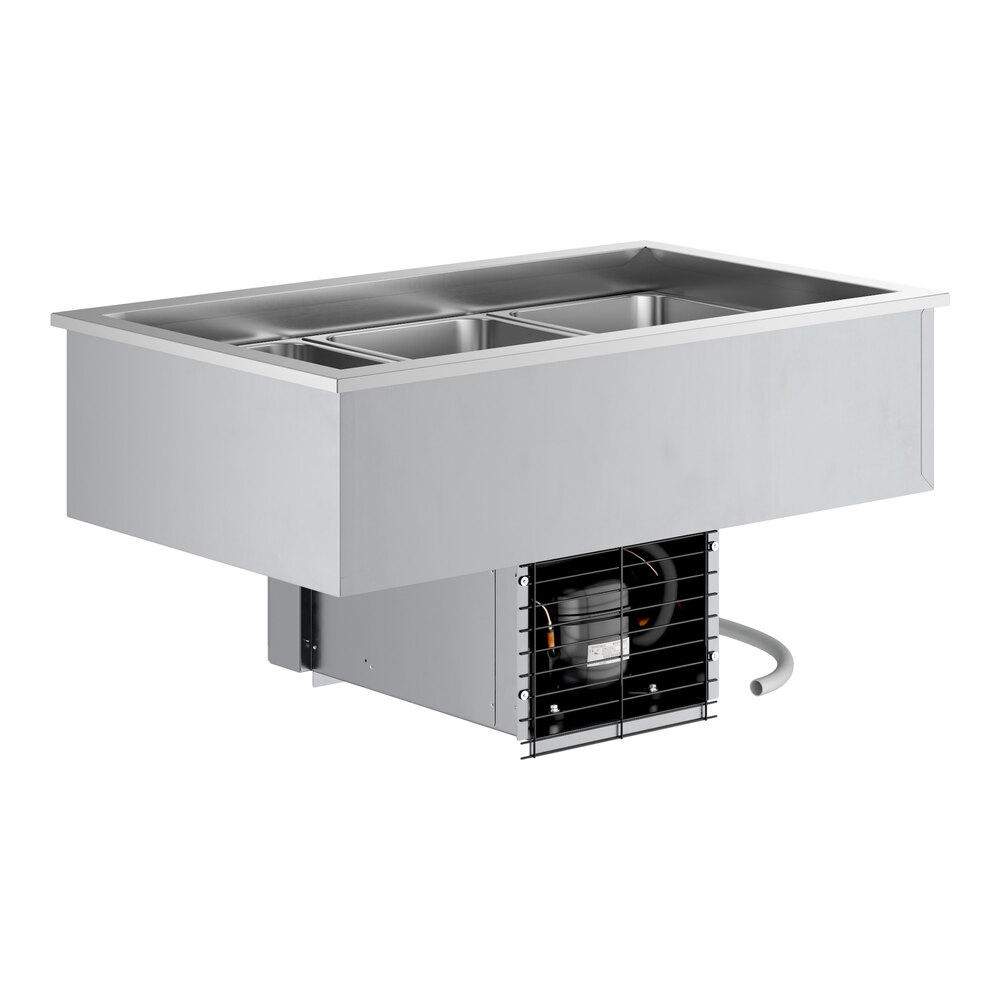

The bottom-mounted 1/3 hp compressor circulates high-performance R-290 refrigerant to cool the cold wall refrigerated unit.

Product Specs

  • Simple to Use

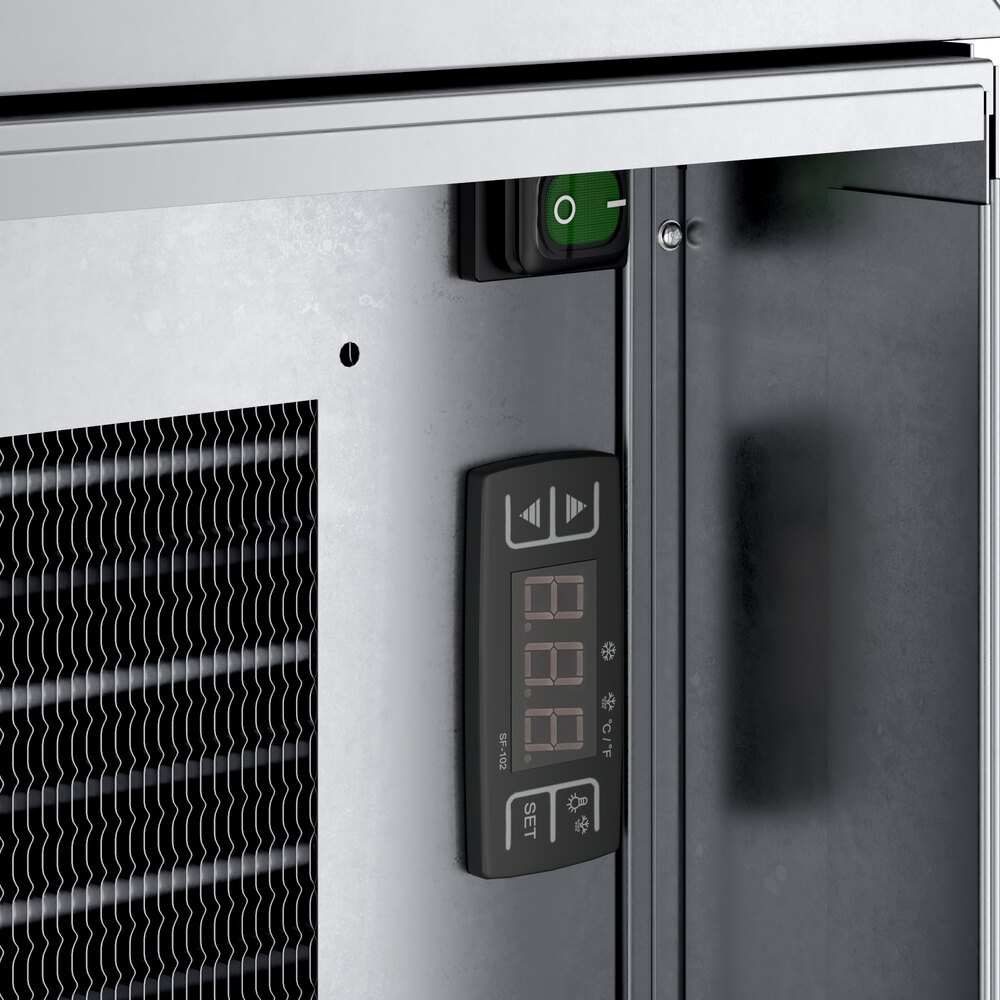

    The recessed wells and a digital controller make this unit easy to use.

  • Ample Space

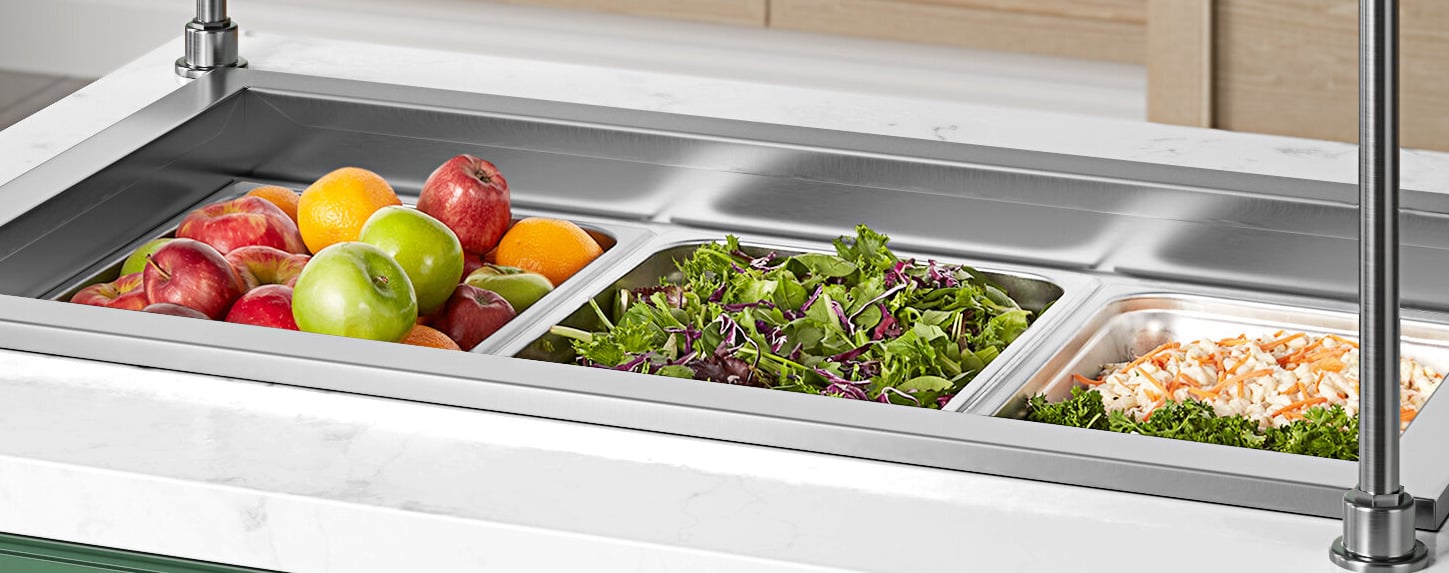

    This unit holds three full size 12" x 20" food pans up to 6" deep (sold separately).

Easy to Maintain

This well is easy to clean thanks to its 3/4" NPT drain for quick cleaning and defrosting. It also has a manual defrost and simplified installation.

Frequently Asked Questions

View All FAQs

Any cutout dimensions provided are intended to give an idea of the space required and may vary within normal manufacturing tolerances. We highly recommend that you receive the unit, measure it to confirm exact dimensions needed, and then proceed with making the cutout(s).
